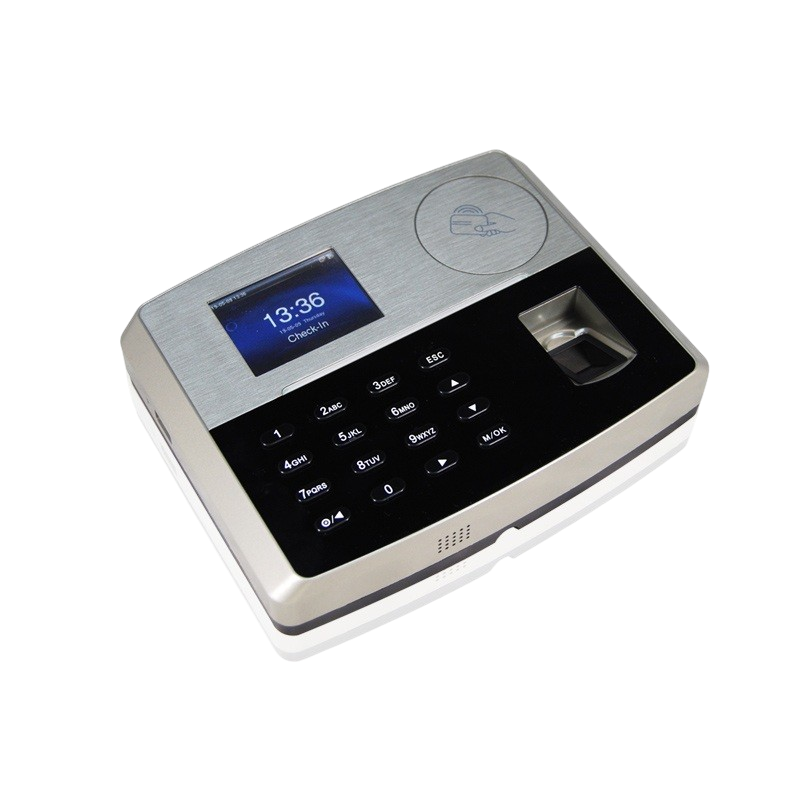

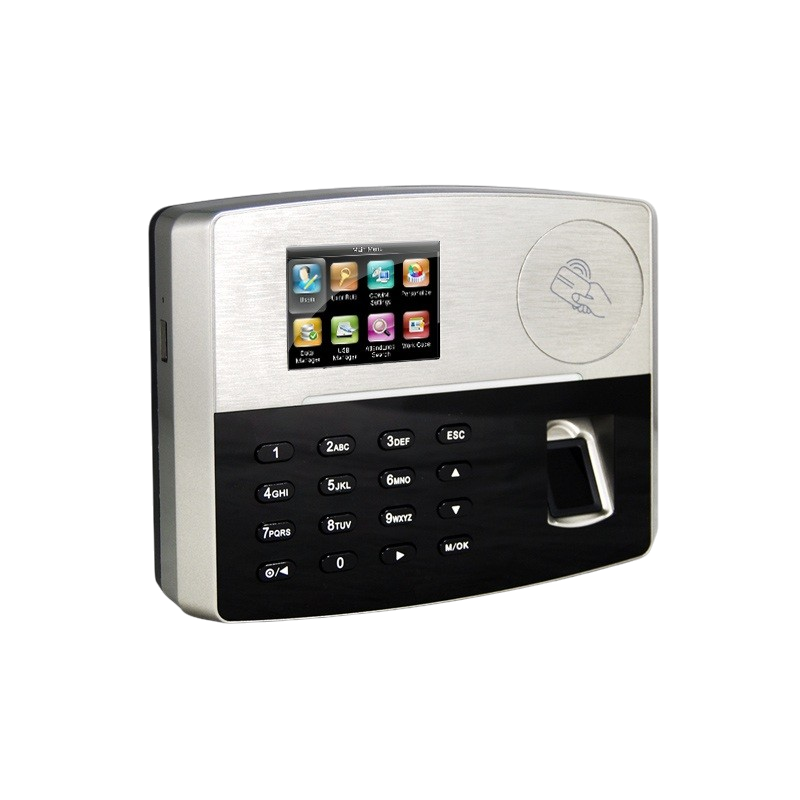

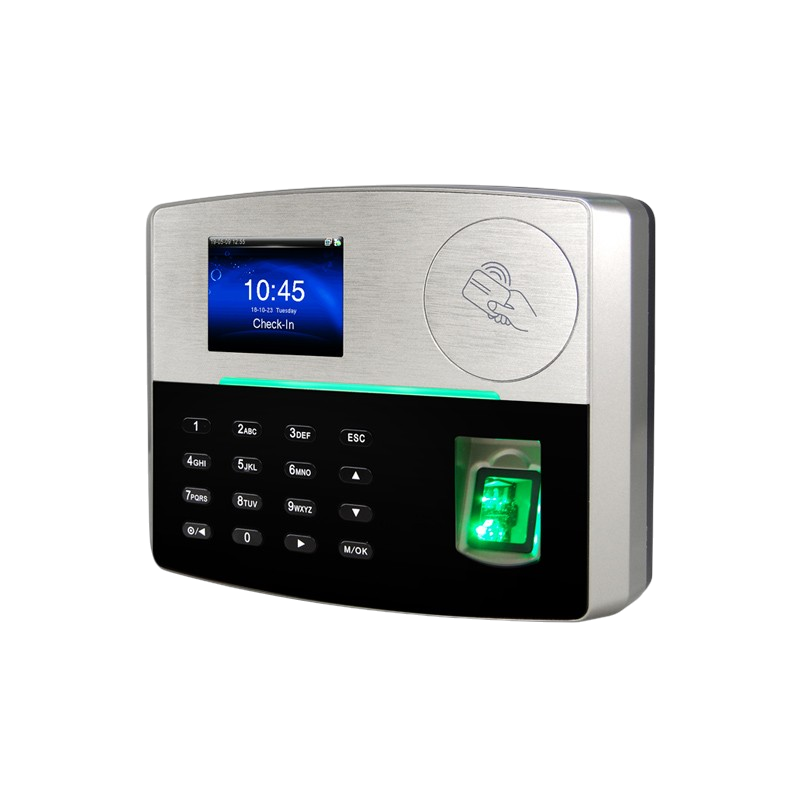

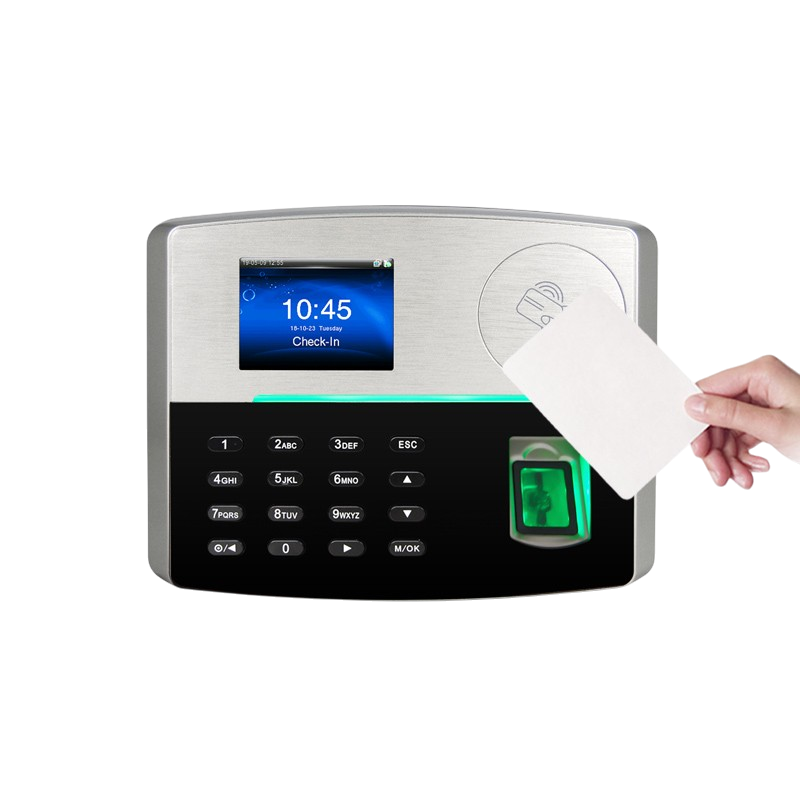

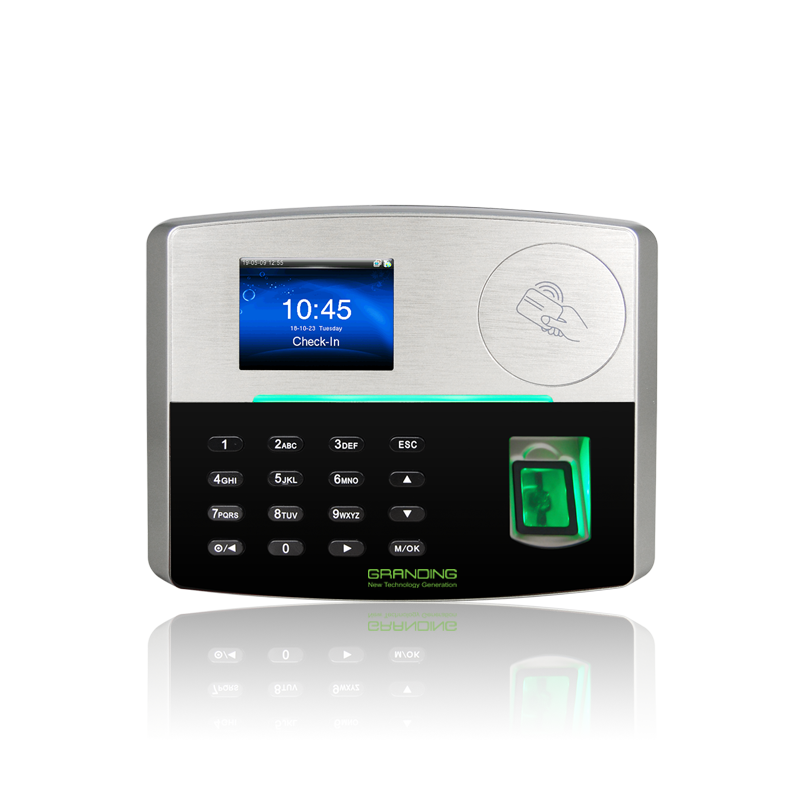

FP106
Fingerprint Time Attendance System with Battery
Fingerprint and card attendance terminal with built-in backup battery for standard office deployments.
Product Overview
FP106 is a multi-verification biometric time attendance terminal supporting fingerprint, card and PIN verification. It supports network and standalone operation with USB data transfer, optional wireless communication, and a built-in lithium backup battery for continuity during power interruption.
Key capacity
Recognition methods
- Fingerprint
- Card
- PIN
Key Features
- Battery: Built-in backup lithium battery, approximately 3-4 hours
- MIFARE / HID card reader
- NFC reader
- Wi-Fi
- 3G
- 4G
- PoE
- Serial printer
Technical Specifications
| Display | 3-inch TFT touch screen |
|---|---|
| Face capacity | — |
| Fingerprint capacity | 5,000 |
| Card capacity | 10,000 |
| Log capacity | 200,000 |
| Recognition | Fingerprint · Card · PIN |
| Power | 110/220 VAC to 12VDC / 1.5A; built-in 3.7V 4000mAh lithium battery |
| Dimensions | 200 x 153 x 44 mm |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 20% to 80% |
Communication
- TCP/IP
- USB Host
- RS232/485
- Wi-Fi optional
- 3G optional
- 4G optional
Access control interface
- External siren
Recommended Use
Standard office time attendance where fingerprint, card and battery backup are required.
Usage Environments
Typical office and facility deployments for standard fingerprint attendance.
-
Office Attendance Corridor
Daily fingerprint and card check-in along a busy office passage.
-
Reception Staff Entry
Staff clock-in at the main reception pass-through during peak arrival.
-
HR Admin Office
Wall-mounted terminal in a compact HR office with backup power continuity.
