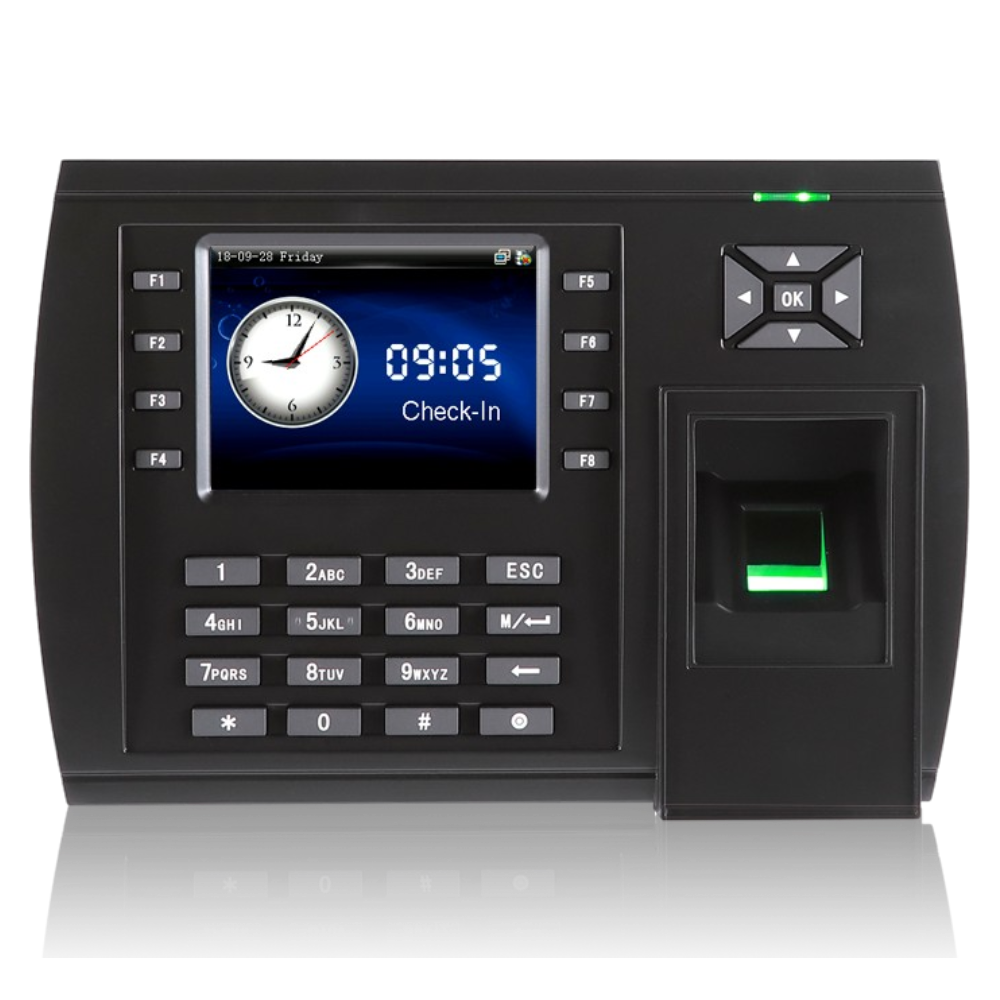

FP107
Fingerprint and Card Time Attendance & Access Control Terminal
Higher-capacity fingerprint and card terminal for attendance and access control use cases.
Product Overview
FP107 combines fingerprint recognition, card verification and access control connectivity in a multimedia attendance terminal. It is suitable for deployments that require high card capacity, large log storage and support for network, USB and optional wireless communication.
Key capacity
Recognition methods
- Fingerprint
- Card
- PIN
Key Features
- ID / MIFARE / HID card reader
- NFC reader
- Wi-Fi
- 3G
- 4G
- Printer
Technical Specifications
| Display | 3.5-inch TFT screen |
|---|---|
| Face capacity | — |
| Fingerprint capacity | 10,000 |
| Card capacity | 50,000 |
| Log capacity | 200,000 |
| Recognition | Fingerprint · Card · PIN |
| Power | 110/220 VAC to 12VDC / 1.5A |
| Dimensions | 20.5 x 14.5 x 3.5 cm |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 20% to 80% |
Communication
- TCP/IP
- USB Host
- RS232/485
- Wiegand output
- Wi-Fi optional
- 3G optional
- 4G optional
Access control interface
- Wiegand output
- External bell
Recommended Use
Attendance and access control projects needing high fingerprint/card capacity.
Usage Environments
Ideal for attendance plus electric-lock access at doors, lanes, and facility entrances.
-
Access-Controlled Office Door
Fingerprint verification beside a secure office door with lock hardware.
-
Facility Staff Entrance
High-volume card and fingerprint capture at an industrial staff entrance.
-
Security Access Lane
Controlled entry lane with turnstile-style passage and reader zone.
